IDT74FCT20807 Datasheet, Driver, Renesas

IDT74FCT20807 Features

• Driver
• High frequency > 150MHz
• Guaranteed low skew < 150ps (max.) between any two outputs
• Very low duty cycle distortion < 300ps
• High speed: propagatio

PDF File Details

Part number:

IDT74FCT20807

Manufacturer:

Renesas ↗

File Size:

180.99kb

Download:

📄 Datasheet

Description:

2.5v cmos 1-to-10 clock driver. The FCT20807 is a 2.5V compatible, high speed, low noise, 1:10 fanout, non-inverting clock buffer. The large fanout from a single in

IDT74FCT20807 Application

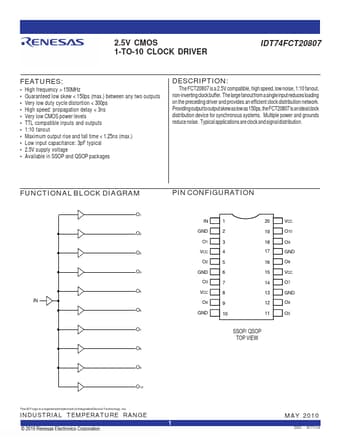

• Applications are clock and signal distribution. FUNCTIONAL BLOCK DIAGRAM O1 O2 O3 O4 O5 IN O6 O7 O8 O9 O10 The IDT logo is a registered trademark o
