IDT74FCT245CT FAST CMOS OCTAL BIDIRECTIONAL TRANSCEIVER

The IDT octal bidirectional transceivers are built using an advanced dual metal CMOS technology. The FCT245T is designed for asynchronous twoway communication between data buses. The transmit/receive (T/R) input determines the direction of data flow through the bidirectional transceiver. Transmit (.

IDT74FCT245CT Features

* Std., A, and C grades

* Low input and output leakage ≤1µA (max.)

* CMOS power levels

* True TTL input and output compatibility:

* VOH = 3.3V (typ.)

* VOL = 0.3V (typ.)

* High Drive outputs (-15mA IOH, 64mA IOL)

* Meets or exceeds JED

IDT74FCT245CT Datasheet (193.12 KB)

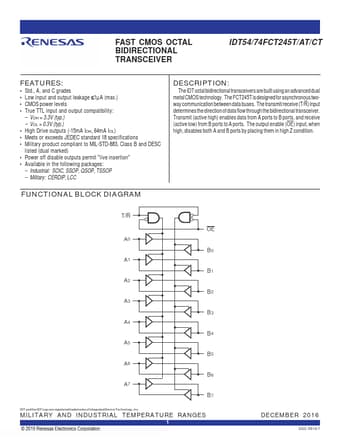

IDT74FCT245CT Datasheet Preview — Preview of IDT74FCT245CT PDF

Datasheet Details

Part number:

IDT74FCT245CT

Manufacturer:

Renesas ↗

File Size:

193.12 KB

Description:

Fast cmos octal bidirectional transceiver.
