IDT74FCT2244CT

FAST CMOS OCTAL BUFFER/LINE DRIVER

Renesas

IDT74FCT2244CT Features

* A and C grades

* Low input and output leakage ≤1µA (max.)

* CMOS power levels

* True TTL input and output compatibility:

* VOH = 3.3V (typ.)

* VOL = 0.3V (typ.)

* Meets or exceeds JEDEC standard 18 specifications

* Resistor outputs (

IDT74FCT2244CT General Description

The IDT octal buffer/line driver is built using an advanced dual metal CMOS technology. The FCT2244T is designed to be employed as a memory and address driver, clock driver, and bus-oriented transmitter/ receiver which provides improved board density. The FCT2244T has balanced output drive with cur.

IDT74FCT2244CT Datasheet (172.09 KB)

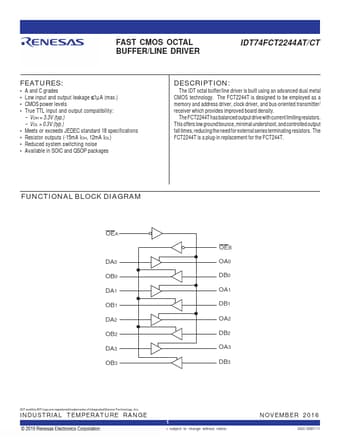

IDT74FCT2244CT Datasheet Preview — Preview of IDT74FCT2244CT PDF

Datasheet Details

Part number:

IDT74FCT2244CT

Manufacturer:

Renesas ↗

File Size:

172.09 KB

Description:

Fast cmos octal buffer/line driver.
