IDT74FCT245AT, IDT74FCT245T, FAST CMOS OCTAL BIDIRECTIONAL TRANSCEIVER

IDT54/74FCT245T/AT/CT FAST CMOS OCTAL BIDIRECTIONAL TRANSCEIVER MILITARY AND INDUSTRIAL TEMPERATURE RANGES FAST CMOS OCTAL BIDIRECTIONAL TRANSCEIVER.
The IDT octal bidirectional transceivers are built using an advanced dual metal CMOS technology.

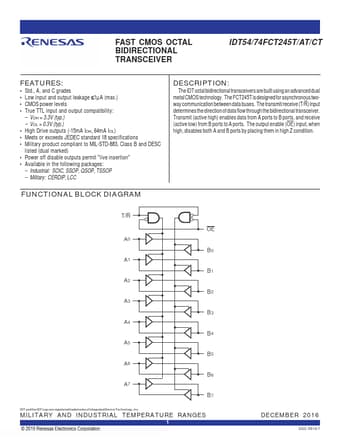

datasheet Preview Page 1 from Datasheet4u.com

IDT74FCT245T-Renesas.pdf

IDT74FCT245AT Datasheet Preview — This datasheet PDF includes multiple part numbers: IDT74FCT245AT, IDT74FCT245T. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IDT74FCT245AT, IDT74FCT245T

Manufacturer:

Renesas ↗

File Size:

193.12 KB

Description:

FAST CMOS OCTAL BIDIRECTIONAL TRANSCEIVER

Note:

This datasheet PDF includes multiple part numbers: IDT74FCT245AT, IDT74FCT245T.
Please refer to the document for exact specifications by model.

Features

* Std. , A, and C grades
* Low input and output leakage ≤1µA (max. )
* CMOS power levels
* True TTL input and output compatibility:
* VOH = 3.3V (typ. )
* VOL = 0.3V (typ. )
* High Drive outputs (-15mA IOH, 64mA IOL)
* Meets or exceeds JED
