IDT74FCT3245A 3.3V CMOS OCTAL BIDIRECTIONAL TRANSCEIVERS

The FCT3245/A octal transceivers are built using advanced dual metal CMOS technology. These high-speed, low-power transceivers are ideal for synchronous communication between two busses (A and B). The direction control pin (DIR) controls the direction of data flow. The output enable pin (OE) overri.

IDT74FCT3245A Features

* 0.5 MICRON CMOS Technology

* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)

* 25 mil Center SSOP and QSOP Packages

* Extended commercial range of -40°C to +85°C

* VCC = 3.3V ±0.3V, Normal Range or VCC = 2.7V to 3.6V,

IDT74FCT3245A_IntegratedDeviceTechnology.pdf

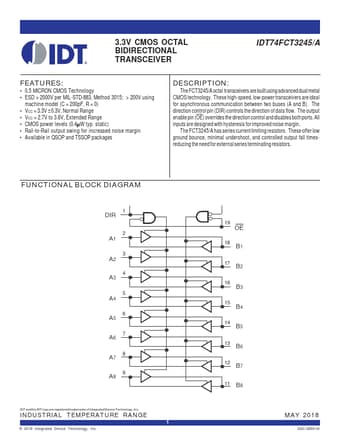

Preview of IDT74FCT3245A PDF
IDT74FCT3245A Datasheet Preview Page 2 IDT74FCT3245A Datasheet Preview Page 3

Datasheet Details

Part number:

IDT74FCT3245A

Manufacturer:

Integrated Device Tech

File Size:

44.44 KB

Description:

3.3v cmos octal bidirectional transceivers.
