IDT74FCT32932-100

3.3V LOW SKEW PLL-BASED CMOS CLOCK DRIVER

IDT74FCT32932-100 Features

* 0.5 MICRON CMOS Technology Guaranteed low skew 16 programmable frequency configurations 17 3-state outputs: ±24 mA FCT3932 ±8 mA FCT32932 Output configuration: BANK1: 4 outputs BANK2: 8 outputs BANK3: 5 outputs Dedicated feedback output (Q_FB) Maxim

IDT74FCT32932-100 General Description

The FCT3932 uses phase-lock loop technology to lock the frequency and phase of the feedback to the input reference clock. It provides a large number of low skew outputs that are configurable in 16 different modes using the CNTRL 1-4 inputs. A dedicated output, Q_FB, is provided to supply the PLL fe.

IDT74FCT32932-100 Datasheet (131.26 KB)

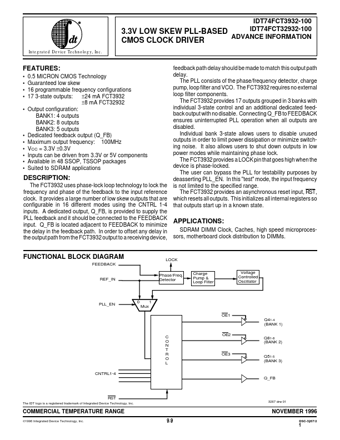

Preview of IDT74FCT32932-100 PDF

Datasheet Details

Part number:

IDT74FCT32932-100

Manufacturer:

Integrated Device Tech

File Size:

131.26 KB

Description:

3.3v low skew pll-based cmos clock driver.
IDT74FCT3932-100, IDT74FCT32932-100 LOW SKEW PLL-BASED CLOCK DRIVER COMMERCIAL TEMPERATURE RANGES IDT74FCT3932-100 IDT74FCT32932-100 3.3V LOW SKEW P.
