F1152NBGI RF to IF Dual Downconverting Mixer

This document describes the specifications for the IDTF1152 Zero-DistortionTM RF to IF Downconverting Mixer. This device is part of a series of mixers offered with high side or low side injection options for all UTRA bands. See the Part# Matrix for the details of all devices in this series. The F115.

F1152NBGI Features

* Dual Path for Diversity Systems

* Ideal for Multi-Carrier Systems

* 8.5 dB Gain

* Ultra linear +43 dBm IP3O

* Low NF < 10 dB

* 200 Ω output impedance

* Ultra high +13 dBm P1dBI

* Pin Compatible w/existing solutions

* 6x6 36 pi

F1152NBGI-IntegratedDeviceTechnology.pdf

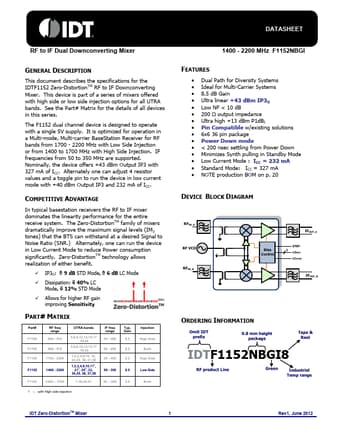

Preview of F1152NBGI PDF
