IDT54FCT162543AT Datasheet - Integrated Device Technology

IDT54FCT162543AT FAST CMOS 16-BIT LATCHED TRANSCEIVER

The FCT16543T/AT/CT/ET and FCT162543T/AT/CT/ET 16-bit latched transceivers are built using advanced dual metal CMOS technology. These high-speed, low-power devices are organized as two independent 8-bit D-type latched transceivers with separate input and output control to permit independent control.

IDT54FCT162543AT Features

* Common features:

* 0.5 MICRON CMOS Technology

* High-speed, low-power CMOS replacement for ABT functions

* Typical tSK(o) (Output Skew) < 250ps

* Low input and output leakage ≤1µ A (max.)

* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using mach

IDT54FCT162543AT_IntegratedDeviceTechnology.pdf

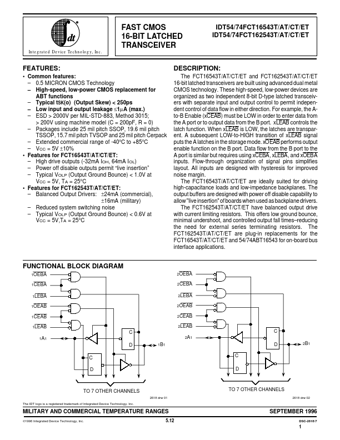

Preview of IDT54FCT162543AT PDF
IDT54FCT162543AT Datasheet Preview Page 2 IDT54FCT162543AT Datasheet Preview Page 3

Datasheet Details

Part number:

IDT54FCT162543AT

Manufacturer:

Integrated Device Technology

File Size:

127.73 KB

Description:

Fast cmos 16-bit latched transceiver.
