IDT54FCT162543T Datasheet - Integrated Device Technology

IDT54FCT162543T, FAST CMOS 16-BIT LATCHED TRANSCEIVER

FAST CMOS 16-BIT LATCHED TRANSCEIVER Integrated Device Technology, Inc.IDT54/74FCT16543T/AT/CT/ET IDT54/74FCT162543T/AT/CT/ET .
The FCT16543T/AT/CT/ET and FCT162543T/AT/CT/ET 16-bit latched transceivers are built using advanced dual metal CMOS technology.

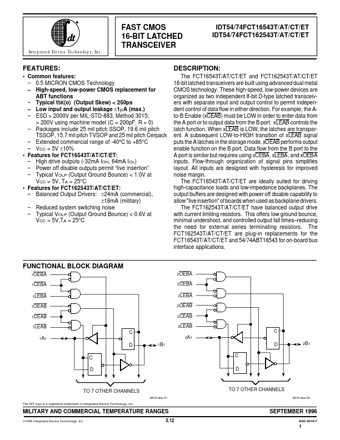

datasheet Preview Page 1 from Datasheet4u.com

IDT54FCT162543T_IntegratedDeviceTechnology.pdf

IDT54FCT162543T Datasheet Preview — Preview of IDT54FCT162543T PDF

Datasheet Details

Part number:

IDT54FCT162543T

Manufacturer:

Integrated Device Technology

File Size:

127.73 KB

Description:

FAST CMOS 16-BIT LATCHED TRANSCEIVER

Features

* Common features:
* 0.5 MICRON CMOS Technology
* High-speed, low-power CMOS replacement for ABT functions
* Typical tSK(o) (Output Skew) < 250ps
* Low input and output leakage ≤1µ A (max. )
* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using mach

Applications

* FUNCTIONAL BLOCK DIAGRAM 1OEBA 1CEBA 1LEBA 1OEAB 1CEAB 1LEAB 2OEBA 2CEBA 2LEBA 2OEAB 2CEAB 2LEAB C 1A1 2A1 C 1B1 D C D D C D 2 B1 TO 7 OTHER CHANNELS 2618 drw 01 TO 7 OTHER CHANNELS 2618 drw 02 The IDT logo is a registered trademark of Integrated Device Technology, Inc. MILITARY AND COMME
