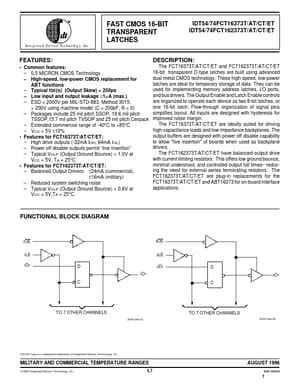

datasheet Preview Page 1 from Datasheet4u.com

IDT54FCT16373AT FAST CMOS 16-BIT TRANSPARENT LATCHES

FAST CMOS 16-BIT TRANSPARENT LATCHES Integrated Device Technology, Inc.IDT54/74FCT16373T/AT/CT/ET IDT54/74FCT162373T/AT/CT/ET .
The FCT16373T/AT/CT/ET and FCT162373T/AT/CT/ET 16-bit transparent D-type latches are built using advanced dual metal CMOS technology.

IDT54FCT16373AT_IntegratedDeviceTechnology.pdf

IDT54FCT16373AT Datasheet Preview — Preview of IDT54FCT16373AT PDF

Datasheet Details

Part number:

IDT54FCT16373AT

Manufacturer:

Integrated Device Technology

File Size:

121.90 KB

Description:

FAST CMOS 16-BIT TRANSPARENT LATCHES

Features

* Common features:
* 0.5 MICRON CMOS Technology
* High-speed, low-power CMOS replacement for ABT functions
* Typical tSK(o) (Output Skew) < 250ps
* Low input and output leakage ≤1µ A (max. )
* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using mach

Applications

* FUNCTIONAL BLOCK DIAGRAM 1OE 2OE 1LE 1D1 2LE D 1O1 2D1 D 2O1 C C TO 7 OTHER CHANNELS 2543 drw 01 TO 7 OTHER CHANNELS 2543 drw 02 The IDT logo is a registered trademark of Integrated Device Technology, Inc. MILITARY AND COMMERCIAL TEMPERATURE RANGES ©1996 Integrated Device Technology,
