IDT54FCT16646T FAST CMOS 16-BIT BUS TRANSCEIVER/ REGISTERS (3-STATE)

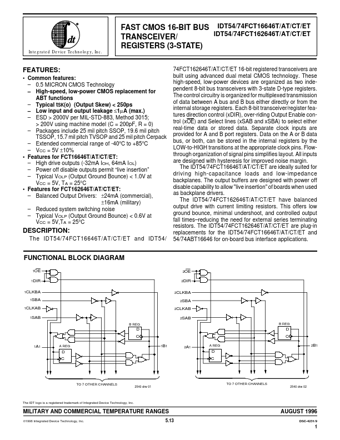

The IDT54/74FCT16646T/AT/CT/ET and IDT54/ FUNCTIONAL BLOCK DIAGRAM 1OE 1DIR 1CLKBA 1SBA 1CLKAB 1SAB B REG 2OE 2DIR 2CLKBA 2SBA 2CLKAB 2SAB B REG D C 1A1 A REG 1B1 2A1 A REG D C 2B1 D C D C TO 7 OTHER CHANNELS TO 7 OTHER CHANNELS 2540 drw 01 2540 drw 02 The IDT logo is a registered trademark.

Integrated Device Technology, Inc. FAST CMOS 16-BIT BUS IDT54/74FCT16646T/AT/CT/ET IDT54/74FCT162646T/AT/CT/ET TRANSCEIVER/ REGISTERS (3-STATE) 74FCT162646T/AT/CT/ET 16-bit registered transceivers are built using advanced dual metal CMOS technology. These high-speed, low-power devices are organized as two independent 8-bit bus transceivers with 3-state D-type registers. The control circuitry is organized for multiplexed transmission of data between A bus and B bus either directly or from the in.

IDT54FCT16646T Features

* direction control (xDIR), over-riding Output Enable control (xOE) and Select lines (xSAB and xSBA) to select either real-time data or stored data. Separate clock inputs are provided for A and B port registers. Data on the A or B data bus, or both, can be stored in the internal registers by the LOW-t

IDT54FCT16646T Datasheet (177.24 KB)

IDT54FCT16646T Datasheet Preview — Preview of IDT54FCT16646T PDF

Datasheet Details

Part number:

IDT54FCT16646T

Manufacturer:

Integrated Device Technology

File Size:

177.24 KB

Description:

Fast cmos 16-bit bus transceiver/ registers (3-state).
