IDT54FCT16652AT Datasheet, Transceiver/ Registers, Integrated Device Technology

Fast cmos 16-bit bus transceiver/ registers

📥 Download PDF (180.75 KB)

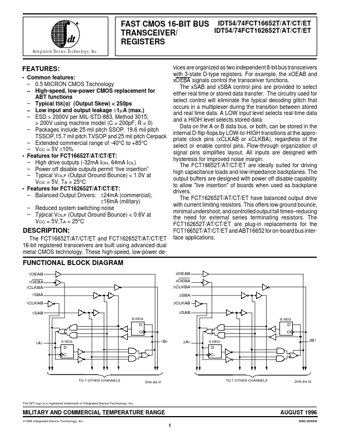

IDT54FCT16652AT Datasheet Preview Page 1 — Preview of IDT54FCT16652AT Datasheet

IDT54FCT16652AT Datasheet Preview Page 2

IDT54FCT16652AT Datasheet Preview Page 3

PDF File Details

Part number:

IDT54FCT16652AT

Manufacturer:

Integrated Device Technology

File Size:

180.75 KB

Download:

📄 Download the IDT54FCT16652AT Datasheet PDF

Description:

Fast cmos 16-bit bus transceiver/ registers.

The FCT16652T/AT/CT/ET and FCT162652T/AT/CT/ET 16-bit registered transceivers are built using advanced dual metal CMOS technology.
These high-speed, low-power de-

vices are organized as two independ.

✔ IDT54FCT16652AT Features

Common features:
0.5 MICRON CMOS Technology
High-speed, low-power CMOS replacement for ABT functions
Typical tSK(o) (Output Skew) < 250ps
Low input and output

✔ IDT54FCT16652AT Application

FUNCTIONAL BLOCK DIAGRAM 1OEAB 1OEBA 1CLKBA 1 SBA 1CLKAB 1 SAB B REG 2OEAB 2OEBA 2CLKBA 2SBA 2CLKAB 2SAB
