IDT54FCT244A Datasheet - Integrated Device Technology

IDT54FCT244A FAST CMOS OCTAL BUFFER/LINE DRIVER

The IDT octal buffer/line drivers are built using an advanced dual metal CMOStechnology.The FCT244isdesignedtobeemployedasamemoryand address driver, clock driver, and bus-oriented transmitter/receiver which provides improved board density. FUNCTIONAL BLOCK DIAGRAM 1 OEA 2 DA0 3 OB0 DA1 4 OB1 5 DA.

IDT54FCT244A Features

* IDT54FCT244 equivalent to FAST™ speed and drive

* IDT54/74FCT244A 25% faster than FAST

* IDT74FCT244C up to 55% faster than FAST

* IOL = 64mA (commercial) and 48mA (military)

* CMOS power levels (1mW typ. static)

* MIlitary product compliant to MIL-

IDT54FCT244A_IntegratedDeviceTechnology.pdf

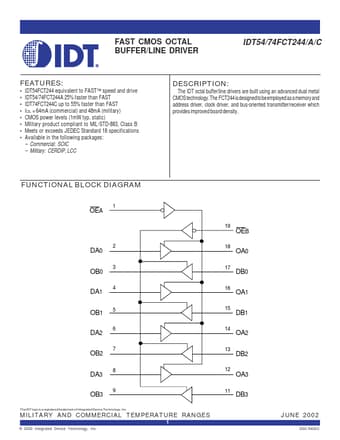

Preview of IDT54FCT244A PDF
IDT54FCT244A Datasheet Preview Page 2 IDT54FCT244A Datasheet Preview Page 3

Datasheet Details

Part number:

IDT54FCT244A

Manufacturer:

Integrated Device Technology

File Size:

69.92 KB

Description:

Fast cmos octal buffer/line driver.
