IDT54FCT3244A Datasheet - Integrated Device Technology

IDT54FCT3244A 3.3V CMOS OCTAL BUFFER/LINE DRIVER

The FCT3244/A octal buffer/line drivers are built using advanced dual metal CMOS technology. These high-speed, low-power buffers are designed to be used as memory data and address drivers, clock drivers, and bus-oriented transmitter/receivers. The three-state controls are designed to operate these .

IDT54FCT3244A Features

* 0.5 MICRON CMOS Technology

* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)

* 25 mil Center SSOP and QSOP Packages

* Extended commercial range of -40°C to +85°C

* VCC = 3.3V ±0.3V, Normal Range or VCC = 2.7V to 3.6V,

IDT54FCT3244A Datasheet (100.26 KB)

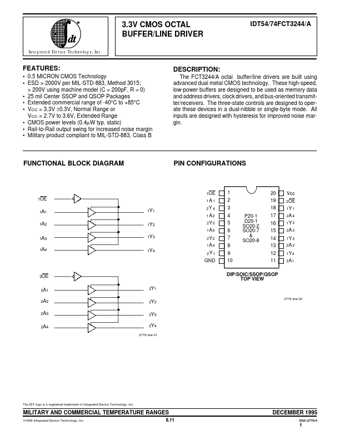

IDT54FCT3244A Datasheet Preview — Preview of IDT54FCT3244A PDF

Datasheet Details

Part number:

IDT54FCT3244A

Manufacturer:

Integrated Device Technology

File Size:

100.26 KB

Description:

3.3v cmos octal buffer/line driver.
