IDT54FCT3573 Datasheet - Integrated Device Technology

3.3V CMOS OCTAL TRANSPARENT LATCHES

IDT54FCT3573 Features

* 0.5 MICRON CMOS Technology

* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)

* 25 mil Center SSOP Packages

* Extended commercial range of -40°C to +85°C

* VCC = 3.3V ± 0.3V, Normal Range or VCC = 2.7V to 3.6V, Extende

IDT54FCT3573 General Description

The FCT3573/A are octal transparent latches built using an advanced dual metal CMOS technology. These octal latches have 3-state outputs and are intended for bus oriented applications. The flip-flops appear transparent to the data when Latch Enable (LE) is HIGH. When LE is LOW, the data that meets .

IDT54FCT3573 Datasheet (108.67 KB)

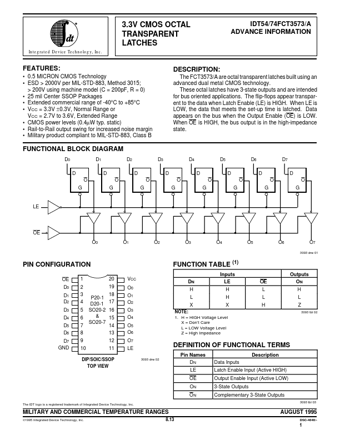

Preview of IDT54FCT3573 PDF

Datasheet Details

Part number:

IDT54FCT3573

Manufacturer:

Integrated Device Technology

File Size:

108.67 KB

Description:

3.3v cmos octal transparent latches.
