IDT54FCT3574A 3.3V CMOS OCTAL D REGISTERS (3-STATE)

The FCT3574/A are 8-bit registers built using an advanced dual metal CMOS technology. These registers consist of eight D-type flip-flops with a buffered common clock and buffered 3-state output control. When the output (OE) input is LOW, the eight outputs are enabled. When the OE input is HIGH, the.

IDT54FCT3574A Features

* 0.5 MICRON CMOS Technology

* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)

* 25 mil Center SSOP Packages

* Extended commercial range of -40°C to +85°C

* VCC = 3.3V ± 0.3V, Normal Range or VCC = 2.7V to 3.6V, Extende

IDT54FCT3574A Datasheet (108.92 KB)

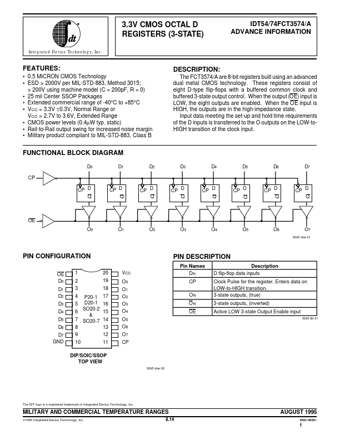

IDT54FCT3574A Datasheet Preview — Preview of IDT54FCT3574A PDF

Datasheet Details

Part number:

IDT54FCT3574A

Manufacturer:

Integrated Device Technology

File Size:

108.92 KB

Description:

3.3v cmos octal d registers (3-state).
