IDT70V05L Features
* True Dual-Ported memory cells which allow simultaneous access of the same memory location
* High-speed access
* Commercial: 25/35/55ns (max.)
* Low-power operation
* IDT70V05S Active: 350mW (typ.) Standby: 3.5mW (typ.)
* IDT70V05L Active: 350mW (typ

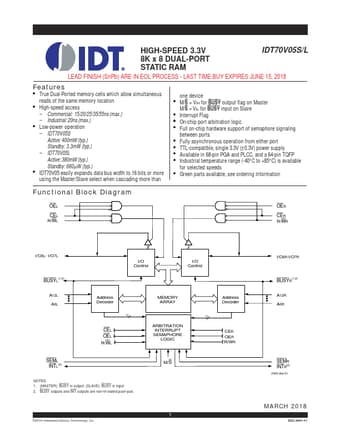

IDT70V05_IntegratedDeviceTechnology.pdf
Datasheet Details
IDT70V05L, IDT70V05
Integrated Device Technology
237.81 KB
High-speed 3.3v 8k x 8 dual-port static ram.
This datasheet PDF includes multiple part numbers: IDT70V05L, IDT70V05.
Please refer to the document for exact specifications by model.
