IDT70V06L - HIGH-SPEED 3.3V 16K x 8 DUAL-PORT STATIC RAM

Product Overview

Integrated Device Technology

📥 Download Datasheet

IDT70V06L HIGH-SPEED 3.3V 16K x 8 DUAL-PORT STATIC RAM by Integrated Device Technology - Datasheet Preview — Datasheet preview – IDT70V06L

Datasheet Details

Part number	IDT70V06L
Manufacturer	Integrated Device Technology
File Size	255.02 KB
Description	HIGH-SPEED 3.3V 16K x 8 DUAL-PORT STATIC RAM
Datasheet	IDT70V06L Datasheet
Note	This datasheet PDF includes multiple part numbers: IDT70V06L, IDT70V06. Please refer to the document for exact specifications by model.

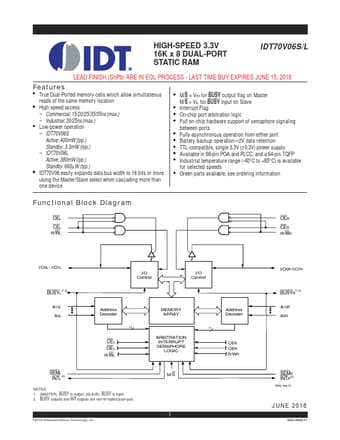

Additional preview pages of the IDT70V06L datasheet.

Product details

Features

True Dual-Ported memory cells which allow simultaneous access of the same memory location.
High-speed access.
Commercial:25/35/55ns (max. ).
Low-power operation.
IDT70V06S Active: 350mW (typ. ) Standby: 3.5mW (typ. ).
IDT70V06L Active: 350mW (typ. ) Standby: 1mW (typ. ).
IDT70V06 easily expands data bus width to 16 bits or more using the Master/Slave select when cascading more than one device.
M/S = H for BUSY output flag on Ma.
