IDT70V25L - HIGH-SPEED 3.3V 8K x 16 DUAL-PORT STATIC RAM

Product Overview

Integrated Device Technology

📥 Download Datasheet

IDT70V25L HIGH-SPEED 3.3V 8K x 16 DUAL-PORT STATIC RAM by Integrated Device Technology - Datasheet Preview — Datasheet preview – IDT70V25L

Datasheet Details

Part number	IDT70V25L
Manufacturer	Integrated Device Technology
File Size	293.35 KB
Description	HIGH-SPEED 3.3V 8K x 16 DUAL-PORT STATIC RAM
Datasheet	IDT70V25L Datasheet
Note	This datasheet PDF includes multiple part numbers: IDT70V25L, IDT70V25. Please refer to the document for exact specifications by model.

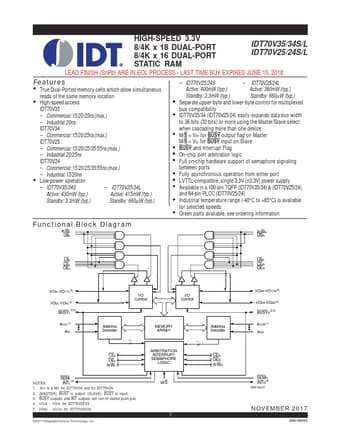

Additional preview pages of the IDT70V25L datasheet.

Product details

Features

True Dual-Ported memory cells which allow simultaneous access of the same memory location.
High-speed access.
Commercial: 25/35/55ns (max. ).
Low-power operation.
IDT70V25S Active: 230mW (typ. ) Standby: 3.3mW (typ. ).
IDT70V25L Active: 230mW (typ. ) Standby: 0.66mW (typ. ).
Separate upper-byte and lower-byte control for multiplexed bus compatibility.
IDT70V25 easily expands data bus width to 32 bits or more using the Master/Sl.
