| Part number | IDT70V261L |
|---|---|
| Manufacturer | Integrated Device Technology |
| File Size | 243.43 KB |

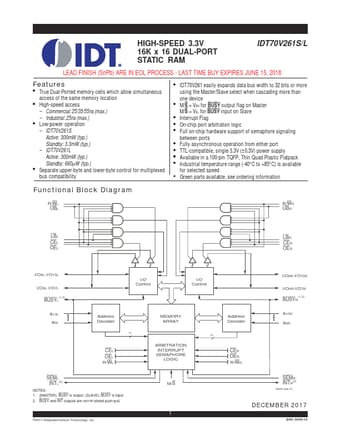

| Description | HIGH-SPEED 3.3V 16K x 16 DUAL-PORT STATIC RAM |
| Datasheet |
 IDT70V261L Datasheet
|
| Note |
This datasheet PDF includes multiple part numbers: IDT70V261L, IDT70V261S. Please refer to the document for exact specifications by model. |
|
|
Pin Configurations(1,2,3) 12/11/01 N/C N/C N/C N/C I/O10L I/O11L I/O12L I/O13L GND I/O14L I/O15L VCC GND I/O0R I/O1R I/O2R VCC I/O3R I/O4R I/O5R I/O6R N/C N/C N/C N/C 1 2 3 4 5 6 7 8 9 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 I/O9L I/O8L I/O7L I/O6L I/O5L I/O4L I/O3L I/O2L GND I/O1L I/O0L OEL VCC R/WL SEML CEL UBL LBL A13L A12L A11L A10L A9L A8L A7L 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Index IDT70V261PF PN100-1(4) 10
