IDT7198S

CMOS STATIC RAMs 64K (16K x 4-BIT) Added Chip Select and Output Controls

IDT7198S Features

* Fast Output Enable (OE) pin available for added system flexibility

* Multiple Chip Selects (CS1, CS2) simplify system design and operation

* High speed (equal access and cycle times)

* Military: 20/25/35/45/55/70/85ns (max.)

* Low power consumption

IDT7198S General Description

The IDT7198 is a 65,536 bit high-speed static RAM orga- nized as 16K x 4. It is fabricated using IDT’s high-performance, high-reliability technology

*CMOS. This state-of-theart technology, combined with innovative circuit design techniques, provides a cost effective approach for memory inte.

IDT7198S Datasheet (80.71 KB)

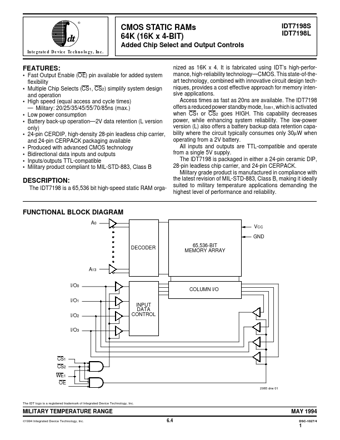

Preview of IDT7198S PDF

Datasheet Details

Part number:

IDT7198S

Manufacturer:

Integrated Device Technology

File Size:

80.71 KB

Description:

Cmos static rams 64k (16k x 4-bit) added chip select and output controls.
