IDT71V256SB

3.3V CMOS FAST SRAM WITH 2.5V COMPATIBLE INPUTS 256K (32K x 8-BIT)

IDT71V256SB Features

* Ideal for high-performance processor secondary cache

* Fast access times:

* 12/15/20ns

* Inputs are 2.5V and LVTTL compatible: VIH = 1.8V

* Outputs are LVTTL compatible

* Low standby current (maximum):

* 2mA full standby

* Small packa

IDT71V256SB General Description

The IDT71V256SB is a 262,144-bit high-speed static RAM organized as 32K x 8. The improved VIH (1.8V) makes the inputs compatible with 2.5V logic levels. The IDT71V256SB is otherwise identical to the IDT71V256SA. The IDT71V256SB has outstanding low power characteristics while at the same time maintai.

IDT71V256SB Datasheet (66.13 KB)

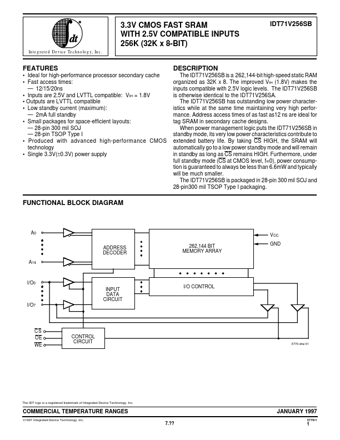

Preview of IDT71V256SB PDF

Datasheet Details

Part number:

IDT71V256SB

Manufacturer:

Integrated Device Technology

File Size:

66.13 KB

Description:

3.3v cmos fast sram with 2.5v compatible inputs 256k (32k x 8-bit).
