IDT54FCT821CT, HIGH-PERFORMANCE CMOS BUS INTERFACE REGISTERS

IDT54/74FCT821AT/BT/CT, 823/825AT/BT/CT/DT HIGH-PERFORMANCE CMOS BUS INTERFACE REGISTERS MILITARY AND COMMERCIAL TEMPERATURE RANGES HIGH-PERFORMANCE.
The FCT82xT series is built using an advanced dual metal CMOS technology.

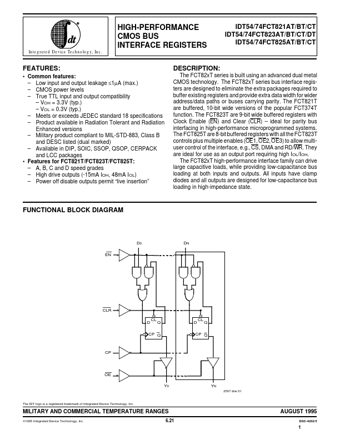

datasheet Preview Page 1 from Datasheet4u.com

IDT54FCT821CT_IntegratedDeviceTechnology.pdf

IDT54FCT821CT Datasheet Preview — Preview of IDT54FCT821CT PDF

Datasheet Details

Part number:

IDT54FCT821CT

Manufacturer:

Integrated Device

File Size:

178.50 KB

Description:

HIGH-PERFORMANCE CMOS BUS INTERFACE REGISTERS

Features

* Common features:
* Low input and output leakage ≤1µA (max. )
* CMOS power levels
* True TTL input and output compatibility
* VOH = 3.3V (typ. )
* VOL = 0.3V (typ. )
* Meets or exceeds JEDEC standard 18 specifications
* Product available
