IDT54FCT827BT Datasheet - Integrated Device

IDT54FCT827BT FAST CMOS 10-BIT BUFFERS

The FCT827T is built using an advanced dual metal CMOS technology. The FCT827T/FCT2827T 10-bit bus drivers provide highperformance bus interface buffering for wide data/address paths or buses carrying parity. The 10-bit buffers have NANDed output enables for maximum control flexibility. All of the .

IDT54FCT827BT Features

* Common features:

* Low input and output leakage ≤1µA (max.)

* CMOS power levels

* True TTL input and output compatibility

* VOH = 3.3V (typ.)

* VOL = 0.3V (typ.)

* Meets or exceeds JEDEC standard 18 specifications

* Product available

IDT54FCT827BT Datasheet (127.57 KB)

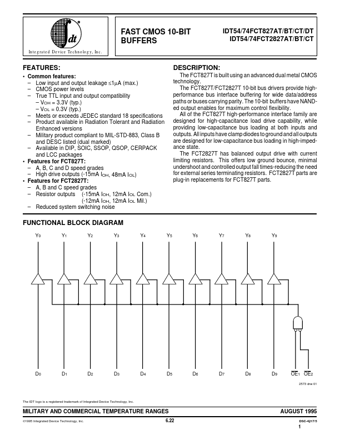

IDT54FCT827BT Datasheet Preview — Preview of IDT54FCT827BT PDF

Datasheet Details

Part number:

IDT54FCT827BT

Manufacturer:

Integrated Device

File Size:

127.57 KB

Description:

Fast cmos 10-bit buffers.
