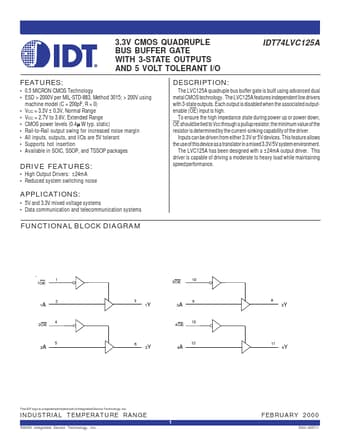

IDT74LVC125A 3.3V CMOS QUADRUPLE BUS BUFFER GATE WITH 3-STATE OUTPUTS INDUSTRIAL TEMPERATURE RANGE 3.3V CMOS QUADRUPLE BUS BUFFER GATE WITH 3-STATE OUTPUTS AND 5 VOLT TOLERANT I/O • 0.5 MICRON CMOS Technology • ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0) • VCC = 3.3V ± 0.3V, Normal Range • VCC = 2.7V to 3.6V, Extended Range • CMOS power levels (0.4µ W typ. static) • Rail-to-Rail output swing for increased noise margin • All inputs, outputs, and I/Os are 5V tolerant • Supports hot insertion • Available in SOIC, SSOP, and TSSOP packages IDT74LVC125A FEATURES: DESCRIPTION: DRIVE FEATURES: APPLICATIONS: The LVC125A quadruple bus buffer gate is built using advanced dual metal CMOS technology.
