IDTQS3251 HIGH-SPEED CMOS QUICKSWITCH 8:1 MUX/DEMUX

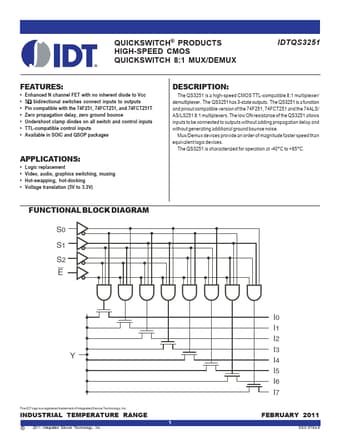

📥 Download Datasheet  Datasheet Preview Page 1

Description

IDTQS3251 HIGH-SPEED CMOS QUICKSWITCH 8:1 MUX/DEMUX INDUSTRIAL TEMPERATURE RANGE QUICKSWITCH® PRODUCTS HIGH-SPEED CMOS QUICKSWITCH 8:1 MUX/DEMUX FEA.
The QS3251 is a high-speed CMOS TTL-compatible 8:1 multiplexer/ demultiplexer.

📥 Download Datasheet

Preview of IDTQS3251 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* IDTQS3251 Enhanced N channel FET with no inherent diode to Vcc 5Ω bidirectional switches connect inputs to outputs Pin compatible with the 74F251, 74FCT251, and 74FCT251T Zero propagation delay, zero ground bounce Undershoot cl

Applications

* Logic replacement Video, audio, graphics switching, muxing Hot-swapping, hot-docking Voltage translation (5V to 3.3V) FUNCTIONAL BLOCK DIAGRAM S0 S1 S2 E I0 I1 I2 Y I3 I4 I5 I6 I7 The IDT logo is a registered trademark of Integrated Device Technology, Inc.
