IS24C32-3 - 65/536-bit/32/768-bit 2-WIRE SERIAL CMOS EEPROM

Product Overview

Integrated Silicon Solution Inc

Datasheet Details

Part number	IS24C32-3
Manufacturer	Integrated Silicon Solution Inc
File Size	81.97 KB
Description	65/536-bit/32/768-bit 2-WIRE SERIAL CMOS EEPROM
Datasheet	IS24C32-3 Datasheet

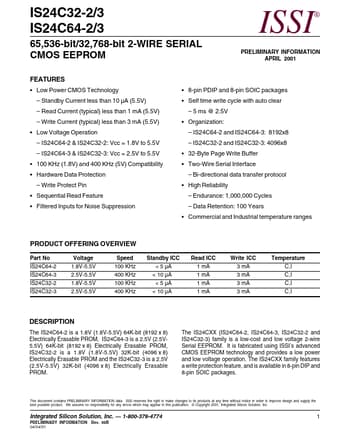

Additional preview pages of the IS24C32-3 datasheet.

Product details

Description

The IS24C64-2 is a 1.8V (1.8V-5.5V) 64K-bit (8192 x 8) Electrically Erasable PROM, IS24C64-3 is a 2.5V (2.5V5.5V) 64K-bit (8192 x 8) Electrically Erasable PROM, IS24C32-2 is a 1.8V (1.8V-5.5V) 32K-bit (4096 x 8) Electrically Erasable PROM and the IS24C32-3 is a 2.5V (2.5V-5.5V) 32K-bit (4096 x 8) Electrically Erasable PROM.

Features

Low Power CMOS Technology.
Standby Current less than 10 µA (5.5V).
Read Current (typical) less than 1 mA (5.5V).
Write Current (typical) less than 3 mA (5.5V).
Low Voltage Operation.
IS24C64-2 & IS24C32-2: Vcc = 1.8V to 5.5V.
IS24C64-3 & IS24C32-3: Vcc = 2.5V to 5.5V.
100 KHz (1.8V) and 400 KHz (5V) Compatibility.
Hardware Data Protection.
Write Protect Pin.
Sequential Read Feature.
Filte.
