IS24C64-2

65/536-bit/32/768-bit 2-WIRE SERIAL CMOS EEPROM

IS24C64-2 Features

* Low Power CMOS Technology

* Standby Current less than 10 µA (5.5V)

* Read Current (typical) less than 1 mA (5.5V)

* Write Current (typical) less than 3 mA (5.5V)

* Low Voltage Operation

* IS24C64-2 & IS24C32-2: Vcc = 1.8V to 5.5V

* IS24C64-3

IS24C64-2 General Description

The IS24C64-2 is a 1.8V (1.8V-5.5V) 64K-bit (8192 x 8) Electrically Erasable PROM, IS24C64-3 is a 2.5V (2.5V5.5V) 64K-bit (8192 x 8) Electrically Erasable PROM, IS24C32-2 is a 1.8V (1.8V-5.5V) 32K-bit (4096 x 8) Electrically Erasable PROM and the IS24C32-3 is a 2.5V (2.5V-5.5V) 32K-bit (4096 x 8) El.

IS24C64-2 Datasheet (81.97 KB)

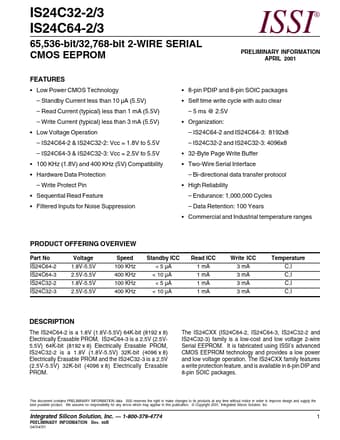

Preview of IS24C64-2 PDF

Datasheet Details

Part number:

IS24C64-2

Manufacturer:

Integrated Silicon Solution Inc

File Size:

81.97 KB

Description:

65/536-bit/32/768-bit 2-wire serial cmos eeprom.
