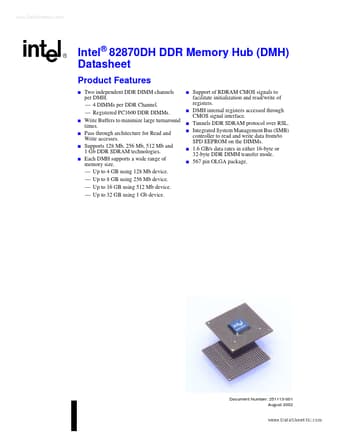

Intel® 82870DH DDR Memory Hub (DMH) Datasheet
Product Features
s
s s s s
Two independent DDR DIMM channels per DMH. — 4 DIMMs per DDR Channel. — Registered PC1600 DDR DIMMs. Write Buffers to minimize large turnaround times. Pass through architecture for Read and Write accesses. Supports 128 Mb, 256 Mb, 512 Mb and 1 Gb DDR SDRAM technologies. Each DMH supports a wide range of memory size. — Up to 4 GB using 128 Mb device. — Up to 8 GB using 256 Mb device. — Up to 16 GB using 512 Mb device. — Up to 32 GB using 1 Gb device.
s
s s s
s s
Support of RDRAM CMOS signals to facilitate initialization and read/write of registers. DMH internal registers accessed through CMOS signal interface. Tunnels DDR SDRAM protocol over RSL.
E8870DH Datasheet
