8080A-1 Datasheet PDF - Intel 8-BIT N-CHANNEL MICROPROCESSOR Specs

8080A-1 - 8-BIT N-CHANNEL MICROPROCESSOR

This page provides the datasheet information for the 8080A-1, a member of the 8080A 8-BIT N-CHANNEL MICROPROCESSOR family.

Datasheet Summary

Description

ADDRESS BUS: The address bus provides the address to memory (up to 64K B-bit words) or denotes the I/O device number for up to 256 input and 256 output devices.

Ao is the least significant address bit.

Datasheet Details

Part number	8080A-1
Manufacturer	Intel
File Size	362.03 KB
Description	8-BIT N-CHANNEL MICROPROCESSOR
Datasheet	8080A-1 Datasheet
Additional preview pages of the 8080A-1 datasheet.

📁 Similar Datasheet

8080A - 8 Bit Microprocessor (AMD)

8082C - STZ8082C (SEMTECH ELECTRONICS)

8085A - 8-Bit Miceoprocessor (AMD)

8085AH - 8 BIT HMOS MICROPROCESSORS (Intel Corporation)

8085AH-1 - 8 BIT HMOS MICROPROCESSORS (Intel Corporation)

8085AH-2 - 8 BIT HMOS MICROPROCESSORS (Intel Corporation)

8086 - 16 Bit Microprocessor (AMD)

8086 - CMOS 16-Bit Microprocessor (Intersil)

8087 - Numeric Data Coprocessor (AMD)

8088 - 8-BIT HMOS MICROPROCESSOR (Intel Corporation)

Full PDF Text Transcription

Click to expand full text

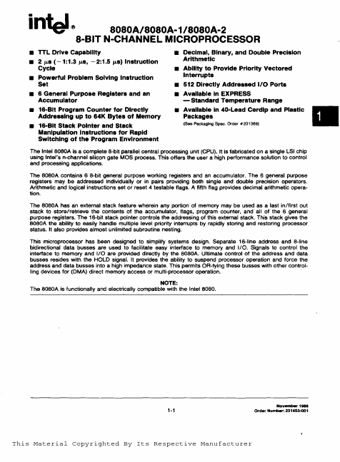

infel.. 8080A/8080A-1/8080A-2 8-BIT N-CHANNEL MICROPROCESSOR • TTL Drive Capability • 2,..,s (-1:1.3,..,s, -2:1.5 ,..,s) Instruction Cycle • Powerful Problem Solving Instruction Set • 6 General Purpose Registers and an Accumulator • 16-Blt Program Counter for Directly Addressing up to 64K Bytes of Memory • 16-Blt Stack Pointer and Stack Manipulation Instructions for Rapid Switching of the Program Environment • Decimal, Binary, and Double Precision Arithmetic • Ability to Provide Priority Vectored Interrupts 512 Directly Addressed 110 Ports • Available In EXPRESS • - Standard Temperature Range • Available In 4Q-Lead Cerdlp and Plastic Packages (See Packaging Spec. Order #231369) • The Intel 8080A is a complete 8-bit parallel central processing unit (CPU).
