8085 Datasheet - Intel

8085 - 8-bit Microprocessor

Intel 8085 8-bit Microprocessor Intel 8085 is an 8-bit, NMOS microprocessor.

It is a 40 pin C package fabricated on a single LSI chip.

The Intel 8085A uses a single +5V D.C supply for its operation.

Its clock speed is about 3 MHz.

The clock cycle is of 320 ns.

The time for the back cycle of the Intel 8085 A-2 is 200 ns.

It has 80 basic instructions and 246 opcodes.

Figure 1 shows the block diagram of Intel 8085A.

It consists of three main sections, an arithmetic and logic unit a timing and contr

8085-Intel.pdf

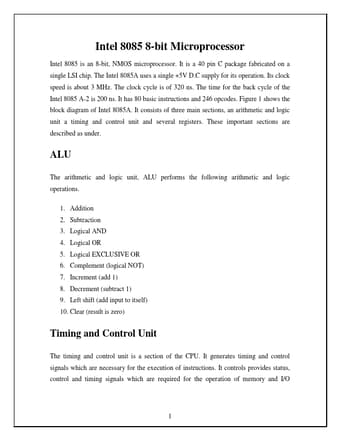

Preview of 8085 PDF
8085 Datasheet Preview Page 2 8085 Datasheet Preview Page 3

Datasheet Details

Part number:

8085

Manufacturer:

Intel

File Size:

521.21 KB

Description:

8-bit microprocessor.
