83C152JA Datasheet - Intel

83C152JA Universal Communication Controller 8-Bit Microcontroller

The 80C152JB JD is a ROMless extension of the 80C152 Universal Communication controller The 80C152JB has the same five 8-bit I O ports of the 80C152 plus an additional two 8-bit I O ports Port 5 and Port 6 The 80C152JB JD also has two additional control pins EBEN (EPROM Bus ENable) and EPSEN (EPROM .

8XC152JA JB JC JD UNIVERSAL COMMUNICATION CONTROLLER 8-BIT MICROCONTROLLER X 8K Factory Mask Programmable ROM Available Y Superset of 80C51 Architecture Y Multi-Protocol Serial Communication I O Port (2 048 Mbps 2 4 Mbps Max) SDLC HDLC Only CSMA CD and SDLC HDLC User Definable Protocols Y Full Duplex Half Duplex Y MCS -51 Compatible UART Y 16 5 MHz Maximum Clock Frequency Y Multiple Power Conservation Modes Y 64KB Program Memory Addressing Y 64KB Data Memory Addressing Y 256 Bytes On-Chip RAM.

83C152JA Features

* for peripheral I O interface and control Silicon implementations are much more cost effective than multi-wire cables found in board level parallel-toserial and serial-to-parallel converters The 83C152 contains in silicon all the features needed for the serialto-parallel conversion Other 83C152 bene

83C152JA-Intel.pdf

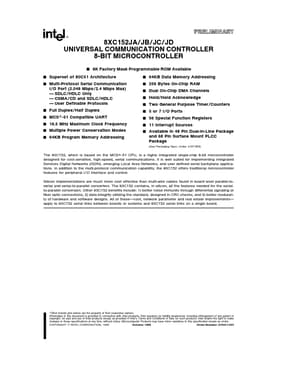

83C152JA Datasheet Preview — Preview of 83C152JA PDF

Datasheet Details

Part number:

83C152JA

Manufacturer:

Intel

File Size:

217.60 KB

Description:

Universal communication controller 8-bit microcontroller.
