83C154 Datasheet - TEMIC Semiconductors

83C154 CMOS 0 to 36 MHz Single Chip 8-bit Microcontroller

83C154 Features

* of the 80C52 with extended ROM capacity (16 K bytes), 256 bytes of RAM, 32 I/O lines, a 6-source 2-level interrupts, a full duplex serial port, an on-chip oscillator and clock circuits, three 16 bit timers with extra features : 32 bit timer and watchdog functions. Timer 0 and 1 can be configured by

83C154_TEMICSemiconductors.pdf

Preview of 83C154 PDF

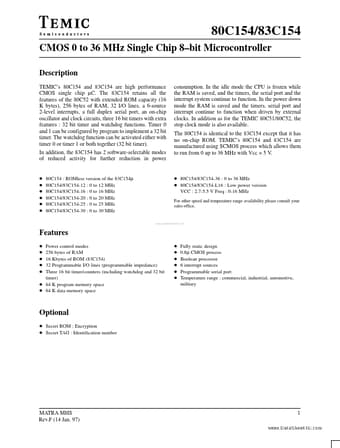

83C154 Datasheet Preview Page 2 83C154 Datasheet Preview Page 3

Datasheet Details

Part number:

83C154

Manufacturer:

TEMIC Semiconductors

File Size:

392.28 KB

Description:

Cmos 0 to 36 mhz single chip 8-bit microcontroller.
