83C152JA Datasheet PDF - Intel Corporation UNIVERSAL COMMUNICATION CONTROLLER 8-BIT MICROCONTROLLER Specs

83C152JA - UNIVERSAL COMMUNICATION CONTROLLER 8-BIT MICROCONTROLLER

Datasheet Summary

Description

The 80C152JB JD is a ROMless extension of the 80C152 Universal Communication controller The 80C152JB has the same five 8-bit I O ports of the 80C152 plus an additional two 8-bit I O ports Port 5 and Port 6 The 80C152JB JD also has two additional control pins EBEN (EPROM Bus ENable) and EPSEN (EPROM

Features

for peripheral I O interface and control Silicon implementations are much more cost effective than multi-wire cables found in board level parallel-toserial and serial-to-parallel converters The 83C152 contains in silicon all the features needed for the serialto-parallel conversion Other 83C152 benefits include 1) better noise immunity through differential signaling or www. DataSheet4U. com fiber optic connections 2) data integrity utilizing the standard designed in CRC checks and 3) better modular.

Datasheet Details

Part number	83C152JA
Manufacturer	Intel Corporation
File Size	274.93 KB
Description	UNIVERSAL COMMUNICATION CONTROLLER 8-BIT MICROCONTROLLER
Datasheet	83C152JA Datasheet
Additional preview pages of the 83C152JA datasheet.

📁 Similar Datasheet

83C152JA - Universal Communication Controller 8-Bit Microcontroller (Intel)

83C152JB - Universal Communication Controller 8-Bit Microcontroller (Intel)

83C152JC - Universal Communication Controller 8-Bit Microcontroller (Intel)

83C152JD - Universal Communication Controller 8-Bit Microcontroller (Intel)

83C154 - CMOS 0 to 36 MHz Single Chip 8-bit Microcontroller (TEMIC Semiconductors)

83C145 - Microcontrollers for TV and video MTV (NXP)

83C166 - 16-Bit CMOS Single-Chip Microcontroller (Siemens Semiconductor Group)

83C166W - CMOS 16-Bit Microcontroller (Siemens)

83C196KC - COMMERCIAL/EXPRESS CHMOS MICROCONTROLLER (Intel)

83C055 - Microcontrollers for TV and video MTV (NXP)

Full PDF Text Transcription

Click to expand full text

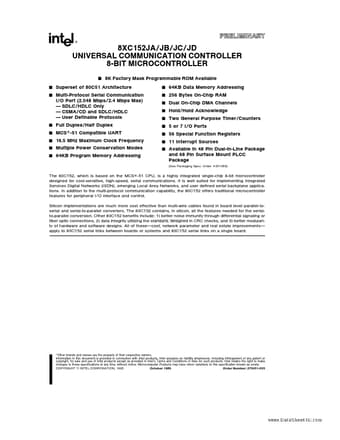

8XC152JA JB JC JD UNIVERSAL COMMUNICATION CONTROLLER 8-BIT MICROCONTROLLER X 8K Factory Mask Programmable ROM Available Y Y Superset of 80C51 Architecture Multi-Protocol Serial Communication I O Port (2 048 Mbps 2 4 Mbps Max) SDLC HDLC Only CSMA CD and SDLC HDLC User Definable Protocols Full Duplex Half Duplex MCS -51 Compatible UART 16 5 MHz Maximum Clock Frequency Multiple Power Conservation Modes 64KB Program Memory Addressing Y Y Y Y Y Y Y Y Y 64KB Data Memory Addressing 256 Bytes On-Chip RAM Dual On-Chip DMA Channels Hold Hold Acknowledge Two General Purpose Timer Counters 5 or 7 I O Ports 56 Special Function Registers 11 Interrupt Sources Available in 48 Pin Dual-in-Line Package and 68 Pin Surface Mount PLCC Package (See Packaging Spec Order 231369) Y Y Y Y Y The 80C152 which is
