83C166W Datasheet - Siemens

83C166W CMOS 16-Bit Microcontroller

C16x-Family of High-Performance CMOS 16-Bit Microcontrollers Preliminary SAB 80C166W/ 83C166W/ 83C166W SAB 80C166W/83C166W / 83C166W 16-Bit Microcontroller q High Performance 16-bit CPU with 4-Stage Pipeline q 100 ns Instruction Cycle Time at 20 MHz CPU Clock q 500 ns Multiplication (16 × 16 bits), 1 µs Division (32 / 16 bit) q Enhanced Boolean Bit Manipulation Facilities q Register-Based Design with Multiple Variable Register Banks q Single-Cycle Context Switching Support q Up to 256 KBytes .

83C166W-Siemens.pdf

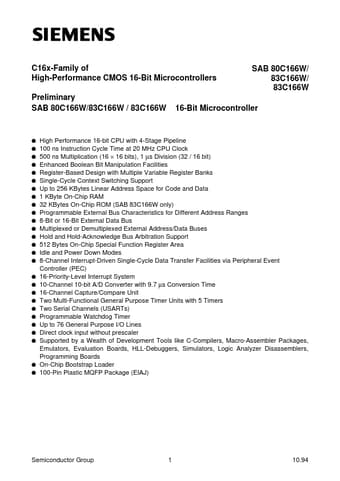

Preview of 83C166W PDF
83C166W Datasheet Preview Page 2 83C166W Datasheet Preview Page 3

Datasheet Details

Part number:

83C166W

Manufacturer:

Siemens

File Size:

878.78 KB

Description:

Cmos 16-bit microcontroller.
