DA82562EX - 10/100 Mbps Platform LAN Connect

Name: DA82562EX
SKU: DA82562EX-506916

Intel

The DA82562EX by Intel is a 10/100 Mbps Platform LAN Connect. Below is the official datasheet preview.

Datasheet Details

Part number	DA82562EX
Manufacturer	Intel
File Size	265.92 KB
Description	10/100 Mbps Platform LAN Connect
Datasheet	DA82562EX_Intel.pdf

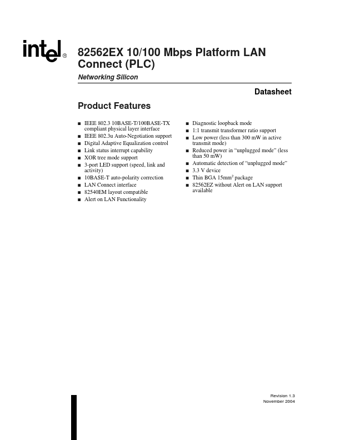

Additional preview pages of the DA82562EX datasheet.

at any time, without notice.

IEEE 802.3 10BASE-T/100BASE-TX compliant physical layer interface IEEE 802.3u Auto-Negotiation support Digital Adaptive Equalization control Link status interrupt capability XOR tree mode support 3-port LED support (speed, link and activity) 10BASE-T auto-polarity correction LAN Connect interface 82540EM layout compatible Alert on LAN Functionality.
Diagnostic loopback mode 1:1 transmit.
