FW82801E - Communications I/O Controller Hub

Intel

📥 Download Datasheet

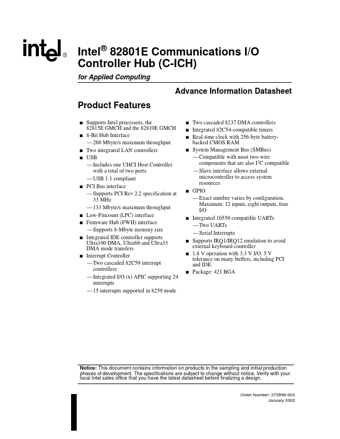

FW82801E Datasheet Preview — Preview of FW82801E PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: FW82801E
Manufacturer: Intel
File Size: 1.17 MB
Datasheet: FW82801E_Intel.pdf
Description: Communications I/O Controller Hub

FW82801E Product details

Description

at any time, without notice.

Features

s s s s s s s s s Supports Intel processors, the 82815E GMCH and the 82810E GMCH 8-Bit Hub Interface.
266 Mbyte/s maximum throughput Two integrated LAN controllers USB.
Includes one UHCI Host Controller with a total of two ports.
USB 1.1 compliant PCI Bus interface.
Supports PCI Rev 2.2 specification at 33 MHz.
133 Mbyte/s maximum throughput Low-Pincount (LPC) interface Firmware Hub (FWH) interface.
Supports 8-Mbyte memory size Integrat.
