LXT901 - (LXT901 / LXT907) Universal 10 Base-T and AUI Transceivers

LXT901 Description

w w w .D a S a t .U LXT901/907 4 t e 10BASE-T and AUI Transceivers Universal e h m o c Datasheet The LXT901 and LXT907 Universal 10BASE-T an.
at any time, without notice.

LXT901 Features

* Functional Features s s s s Integrated Manchester Encoder/Decoder 10BASE-T Transceiver AUI Transceiver Full-Duplex Capable (20 Mbps) Diagnostic Features s s s Four LED Drivers AUI/RJ45 Loopback Remote Signaling of Link Down and Jabber conditions w w w . D t a S a e h s s s s s s s s Compu

LXT901 Applications

* They provide all the active circuitry to interface most standard 802.3 controllers to either the 10BASE-T media or Attachment Unit Interface (AUI). In addition to standard 10 Mbps Ethernet, they also support full-duplex operation at 20 Mbps. The LXT901 and LXT907 are identical except for the functi

📥 Download Datasheet

Preview of LXT901 PDF

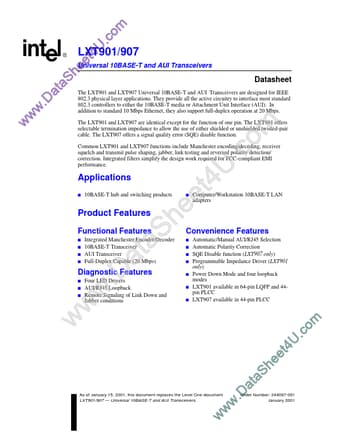

datasheet Preview Page 2 datasheet Preview Page 3
