LXT971A, LXT-971 Datasheet - Intel

LXT971A Dual Speed Fast Ethernet PHY Transceiver

( DataSheet : www.DataSheet4U.com ) Intel® LXT971A 3.3V Dual-Speed Fast Ethernet PHY Transceiver Datasheet The LXT971A is an IEEE compliant Fast Ethernet PHY Transceiver that directly supports both 100BASE-TX and 10BASE-T applications. It provides a Media Independent Interface (MII) for easy attachment to 10/100 Media Access Controllers (MACs). The LXT971A also provides a Low Voltage PECL (LVPECL) interface for use with 100BASE-FX fiber networks. This document also supports the LXT971 device. .

LXT971A Features

* 3.3V Operation. Low power consumption (300 mW typical). Low-power “Sleep” mode. 10BASE-T and 100BASE-TX using a single RJ-45 connection. Supports auto-negotiation and parallel detection. MII interface with extended register capability. Rob

LXT-971-A.pdf

This datasheet PDF includes multiple part numbers: LXT971A, LXT-971. Please refer to the document for exact specifications by model.

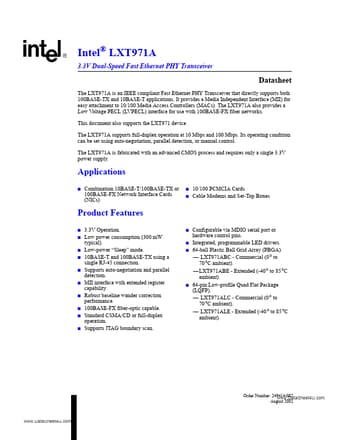

LXT971A Datasheet Preview Page 2 LXT971A Datasheet Preview Page 3

Datasheet Details

Part number:

LXT971A, LXT-971

Manufacturer:

Intel

File Size:

1.17 MB

Description:

Dual speed fast ethernet phy transceiver.

Note:

This datasheet PDF includes multiple part numbers: LXT971A, LXT-971.
Please refer to the document for exact specifications by model.
