LXT972ALC, 3.3V Dual-Speed Fast Ethernet Transceiver Datasheet

LXT972A 3.3V Dual-Speed Fast Ethernet Transceiver Datasheet Datasheet The LXT972A is an IEEE compliant Fast Ethernet PHY Transceiver that directly su.
at any time, without notice.

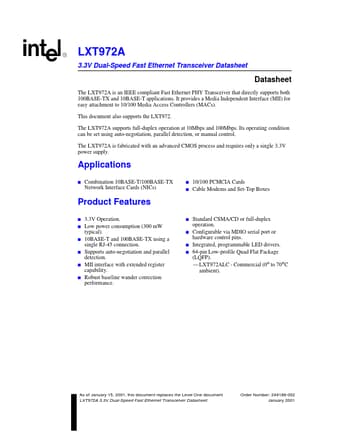

datasheet Preview Page 1 from Datasheet4u.com

LXT972ALC_IntelCorporation.pdf

LXT972ALC Datasheet Preview — Preview of LXT972ALC PDF

Datasheet Details

Part number:

LXT972ALC

Manufacturer:

Intel Corporation

File Size:

833.62 KB

Description:

3.3V Dual-Speed Fast Ethernet Transceiver Datasheet

Features

* s s s s s s 3.3V Operation. Low power consumption (300 mW typical). 10BASE-T and 100BASE-TX using a single RJ-45 connection. Supports auto-negotiation and parallel detection. MII interface with extended register capability. Robust baseline wander correction performance. s s s s Standard CSMA/CD o

Applications

* It provides a Media Independent Interface (MII) for easy attachment to 10/100 Media Access Controllers (MACs). This document also supports the LXT972. The LXT972A supports full-duplex operation at 10Mbps and 100Mbps. Its operating condition can be set using auto-negotiation, parallel detection, or
