LXT970A - Dual-Speed Fast Ethernet Transceiver

General Description

at any time, without notice.

Key Features

  • s s s s s IEEE 802.3 Compliant:.
  • 10BASE-T and 100BASE-TX using a single RJ-45 connection.
  • Supports auto-negotiation and parallel detection for legacy systems.
  • MII interface with extended register capability. Robust baseline wander correction performance. 100BASE-FX fiber optic capable. Standard CSMA/CD or full-duplex operation. Configurable via MII serial port or external control pins. s s s s s s Configurable for DTE or switch.

📥 Download Datasheet

Datasheet Details

Part number LXT970A
Manufacturer Intel Corporation
File Size 1.04 MB
Description Dual-Speed Fast Ethernet Transceiver
Datasheet download datasheet LXT970A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LXT970 Fast Ethernet Transceiver Level One
LXT971A Dual Speed Fast Ethernet PHY Transceiver Intel
LXT972 3.3V Dual-Speed Fast Ethernet Transceiver Datasheet Level One
LXT9763 Fast Ethernet 10/100 Hex Teansceiver with Full MII Intel
LXT9763 Fast Ethernet 10/100 Hex Teansceiver with Full MII Level One

Other Datasheets by Intel Corporation

Part Number Description
LXT972A 3.3V Dual-Speed Fast Ethernet Transceiver Datasheet
LXT972ALC 3.3V Dual-Speed Fast Ethernet Transceiver Datasheet
LXT972M Single-Port 10/100 Mbps PHY Transceiver
LXT974 (LXT974 / LXT975) Fast Ethernet 10/100 Quad Transceivers
LXT975 (LXT974 / LXT975) Fast Ethernet 10/100 Quad Transceivers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

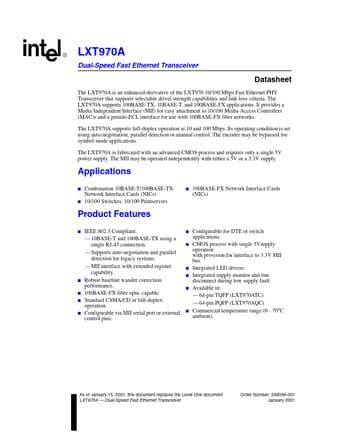

LXT970A Dual-Speed Fast Ethernet Transceiver Datasheet The LXT970A is an enhanced derivative of the LXT970 10/100 Mbps Fast Ethernet PHY Transceiver that supports selectable driver strength capabilities and link-loss criteria. The LXT970A supports 100BASE-TX, 10BASE-T, and 100BASE-FX applications. It provides a Media Independent Interface (MII) for easy attachment to 10/100 Media Access Controllers (MAC)s and a pseudo-ECL interface for use with 100BASE-FX fiber networks. The LXT970A supports full-duplex operation at 10 and 100 Mbps. Its operating condition is set using auto-negotiation, parallel detection or manual control. The encoder may be bypassed for symbol mode applications. The LXT970A is fabricated with an advanced CMOS process and requires only a single 5V power supply.
