M80C186 Datasheet - Intel

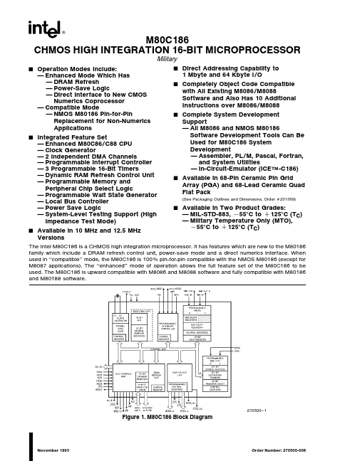

M80C186 - CHMOS HIGH INTEGRATION 16-BIT MICROPROCESSOR

Symbol VCC VCC VSS VSS RESET PGA 9 43 26 60 57 QFP 1 35 52 18 21 Type I I O Name and Function System Power a 5 volt power supply System Ground Reset Output indicates that the M80C186 CPU is being reset and can be used as a system reset It is active HIGH synchronized with the processor clock and last

M80C186 Features

* which are new to the M80186 family which include a DRAM refresh control unit power-save mode and a direct numerics interface When used in ‘‘compatible’’ mode the M80C186 is 100% pin-for-pin compatible with the NMOS M80186 (except for M8087 applications) The ‘‘enhanced’’ mode of operation allows the

M80C186_IntelCorporation.pdf

Preview of M80C186 PDF
M80C186 Datasheet Preview Page 2 M80C186 Datasheet Preview Page 3

Datasheet Details

Part number:

M80C186

Manufacturer:

Intel

File Size:

590.67 KB

Description:

Chmos high integration 16-bit microprocessor.
