SK70704 Datasheet - Intel

SK70704 784 Kbps HDSL Data Pump Chip Set

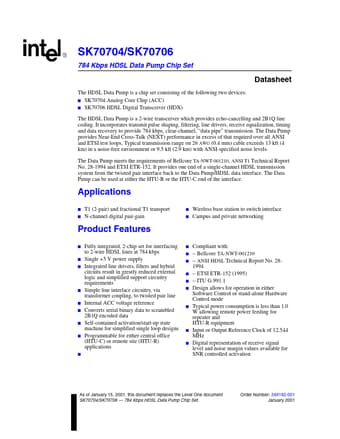

SK70704/SK70706 784 Kbps HDSL Data Pump Chip Set Datasheet The HDSL Data Pump is a chip set consisting of the following two devices: s SK70704 Analog Core Chip (ACC) s SK70706 HDSL Digital Transceiver (HDX) The HDSL Data Pump is a 2-wire transceiver which provides echo-cancelling and 2B1Q line coding. It incorporates transmit pulse shaping, filtering, line drivers, receive equalization, timing and data recovery to provide 784 kbps, clear-channel, “data pipe” transmission. The Data Pump provides .

SK70704 Features

* s Wireless base station to switch interface s Campus and private networking s Fully integrated, 2-chip set for interfacing to 2-wire HDSL lines at 784 kbps s Single +5 V power supply s Integrated line drivers, filters and hybrid circuits result in greatly reduced external logic and simplified supp

SK70704 Datasheet (479.65 KB)
