SK70707 Datasheet - Intel

SK70707 1168 Kbps HSDL Data Pump Chip Set

SK70704/SK70707 or SK70708 1168 Kbps HSDL Data Pump Chip Set Datasheet The HDSL Data Pump is a chip set consisting of the following two devices: s SK70704 Analog Core Chip (ACC) s SK70707 (68-pin PLCC) or SK70708 (44-pin PLCC) HDSL Digital Transceiver (HDX) The HDSL Data Pump is a 2-wire transceiver which provides echo-cancelling and 2B1Q line coding. It incorporates transmit pulse shaping, filtering, line drivers, receive equalization, timing and data recovery to provide 1168 kbps, clear-channe.

SK70707-Intel.pdf

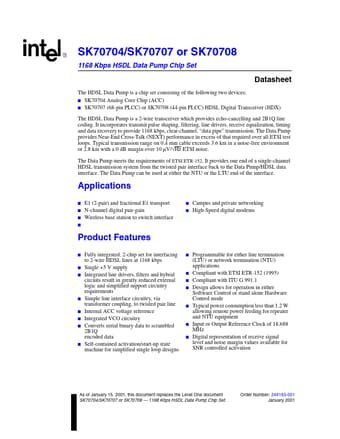

Preview of SK70707 PDF
SK70707 Datasheet Preview Page 2 SK70707 Datasheet Preview Page 3

Datasheet Details

Part number:

SK70707

Manufacturer:

Intel

File Size:

487.85 KB

Description:

1168 kbps hsdl data pump chip set.
