IFN146

Dual Matched N-Channel JFET

InterFET Corporation

IFN146 Features

* InterFET N0450H Geometry

* Low Noise: 1.1 nV/√Hz Typical

* High Gain: 30mS Typical

* RoHS Compliant

* SMT, TH, and Bare Die Package options. Applications

* Low-Noise Audio Amplifier

* Differential Amplifier

* Replacement for Japanese

IFN146 General Description

The -50V InterFET IFN146 is a low noise high gain replacement for the Japanese 2SK146 JFET. Gate leakages are typically less than 50pA at room temperatures. The TO-71 package is hermetically sealed and suitable for military applications. TO-71 Bottom View Source 5 6 Gate Drain 3 7 Drain Gate 2 1.

IFN146 Datasheet (347.32 KB)

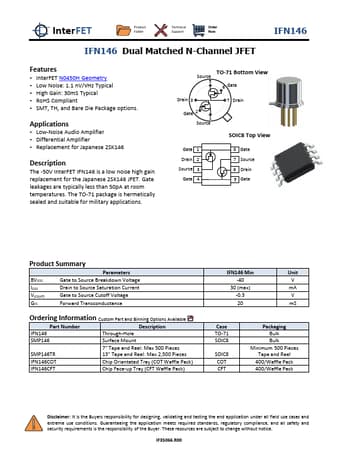

IFN146 Datasheet Preview — Preview of IFN146 PDF

Datasheet Details

Part number:

IFN146

Manufacturer:

InterFET Corporation

File Size:

347.32 KB

Description:

Dual matched n-channel jfet.
