IFN152 Datasheet, Jfet, InterFET

IFN152 Features

  • Jfet
  • InterFET N0132L Geometry
  • Low noise: 1.0 nV/√Hz typical
  • High gain: 30mS typical
  • Low gate leakage: 750fA typical @10V
  • Typical IDSS: 15mA

PDF File Details

Part number:

IFN152

Manufacturer:

InterFET

File Size:

655.23kb

Download:

📄 Datasheet

Description:

N-channel jfet. The -20V InterFET IFN152 is a low noise high gain replacement for the Japanese 2SK152 JFET. Gate leakages are typically 750fA at room

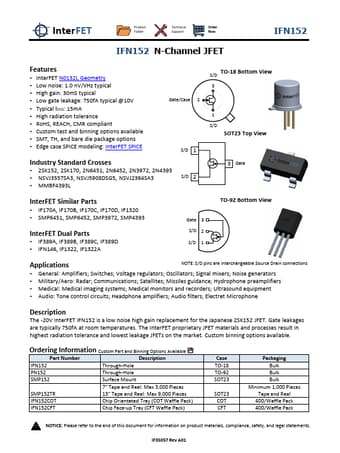

Datasheet Preview: IFN152 📥 Download PDF (655.23kb)
Page 2 of IFN152 Page 3 of IFN152

IFN152 Application

  • Applications NOTE: S/D pins are interchangeable Source Drain connections
  • General: Amplifiers; Switches; Voltage regulators; Oscillators;
