SMP5460

P-Channel JFET

SMP5460 General Description

The 40V InterFET 2N5460, 2N5461, and 2N5462 JFET’s are targeted for sensitive amplifier stages for mid-frequencies designs. Input capacitance is typically 3.2pF. The 2N5462 is target for higher gain applications with a typical Gfs of 3.5mS. Source 1 Drain 2 SOT23 Top View 3 Gate TO-92 Bottom View.

SMP5460 Datasheet (289.98 KB)

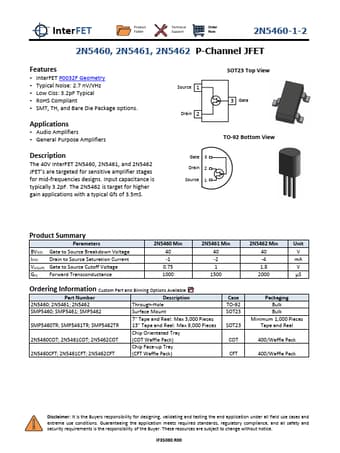

Preview of SMP5460 PDF

Datasheet Details

Part number:

SMP5460

Manufacturer:

InterFET

File Size:

289.98 KB

Description:

P-channel jfet.
