IMISG509

Reduced EMI Clock Chip

IMISG509 Features

* þ þ þ þ þ þ þ þ þ þ þ Generates CPU clock signals for microprocessor systems Reduces measured EMI by 10 dB nominal 4V to 6V operating supply range Supports CPUs from all major manufacturers. Wide range of selectable output frequencies including 60, 50, 48, 40, 33.3, 16.7 Single, low-cost frequency c

IMISG509 General Description

The IMISG509 is a spectrum spread clock generator specially designed for personal computers, laser printers and other digital systems. IMISG509 uses a patented concept to generate popular clock frequencies that are intentionally broadbanded to reduce electromagnetic interference. The radiated emissi.

IMISG509 Datasheet (87.22 KB)

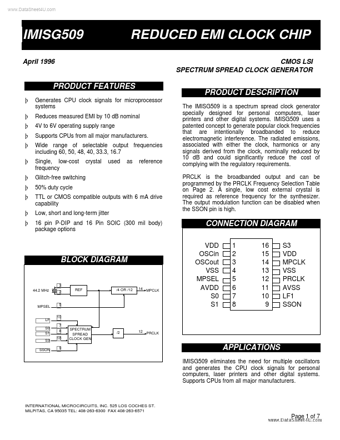

Preview of IMISG509 PDF

Datasheet Details

Part number:

IMISG509

Manufacturer:

International Microcircuits

File Size:

87.22 KB

Description:

Reduced emi clock chip.
