12TQ040PBF, 12TQ035PBF (12TQxxxPBF) SCHOTTKY RECTIFIER

International Rectifier

Description

Bulletin PD-20829 rev.A 04/06 12TQPbF Series SCHOTTKY RECTIFIER 15 Amp IF(AV) = 15Amp VR = 35/ 45V Major Ratings and Characteristics Characteristi.
Features Units A The 12TQPbF Schottky rectifier series has been optimized for very low forward voltage drop, with moderate leakage.

📥 Download Datasheet

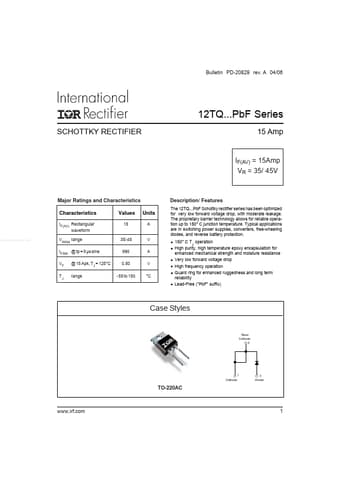

12TQ040PBF Datasheet Preview — This datasheet PDF includes multiple part numbers: 12TQ040PBF, 12TQ035PBF. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 12TQ040PBF, 12TQ035PBF
Manufacturer: International Rectifier
File Size: 232.75 KB
Datasheet: 12TQ035PBF_InternationalRectifier.pdf
Description: (12TQxxxPBF) SCHOTTKY RECTIFIER
Note: This datasheet PDF includes multiple part numbers: 12TQ040PBF, 12TQ035PBF.
Please refer to the document for exact specifications by model.

Applications

* are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection. 150° C TJ operation High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance Very low forward voltage drop High frequency operation Guard ring for enha
