20CTQ035-1PbF Datasheet (264.60 KB)
20CTQ035-1PbF
International Rectifier
264.60 KB
Schottky rectifier.

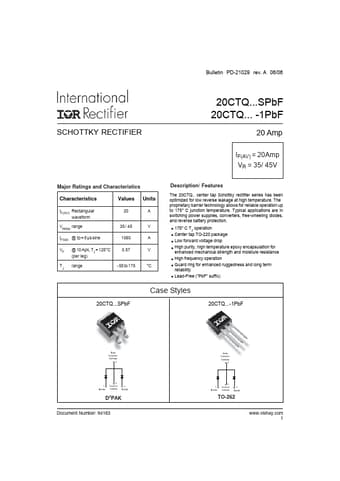

Bulletin PD-21029 rev. A 06/06
SCHOTTKY RECTIFIER
20CTQSPbF 20CTQ -1PbF
20 Amp
IF(AV) = 20Amp VR = 35/ 45V
Major Ratings and Characteristics
Char.
* The 20CTQ.. center tap Schottky rectifier series has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175° C junction temperature. Typical applications are in switching power supplies, converters, free-wheeling diodes,
